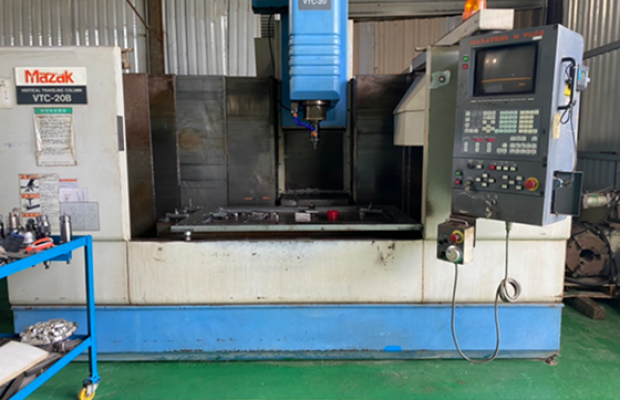

MAZAK MILLING CENTER
Model: Mazak VTC-20B
Bed size: 1460mm x 510mm
Max travel X/Y/Z: 1,460 x 510 x 640MM
Max Height: 640mm
Spindle taper: BT- 40
Automatic tool changer: 24 positions

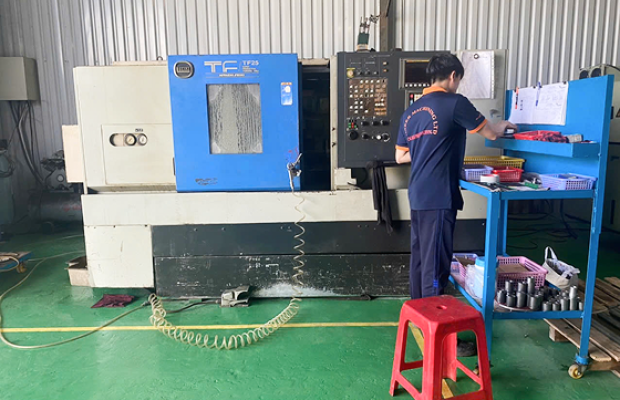

HITACHI SEIKI LATHE
Model: SEIKI TF25
Length capacity: 650mm
Max machining Diameter: 210MM
Max swing: 600mm
Max through spindle with hydraulic chuck: 63.5” OD
Max through spindle without hydraulic chuck: 76mm OD
Station Turret: 10

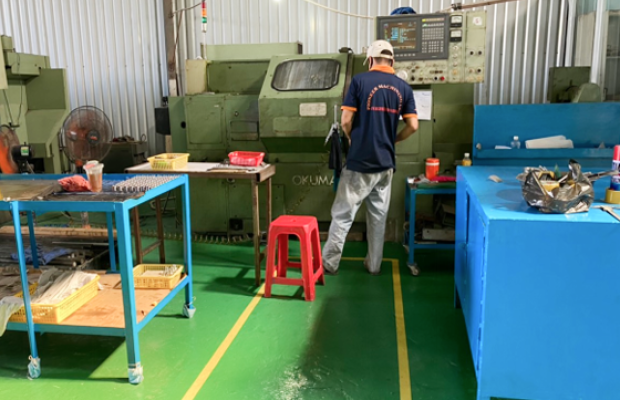

OKUMA LATHE
Model: LB15
Length capacity: 500mm
Max machining Diameter: 200MM
Max swing: 400mm
Max through spindle with hydraulic chuck: 56mm OD
Max through spindle without hydraulic chuck: 70mm OD
Station Turret: 12
TAKISAWA MILLING CENTER
Model: MC-COMPO MAX V2E
Bed size: 900mm x 400mm
Max travel X/Y/Z: 560x 410 x 410MM
Max Height: 530mm
Spindle taper: BT- 40
Automatic tool changer: 24 positions

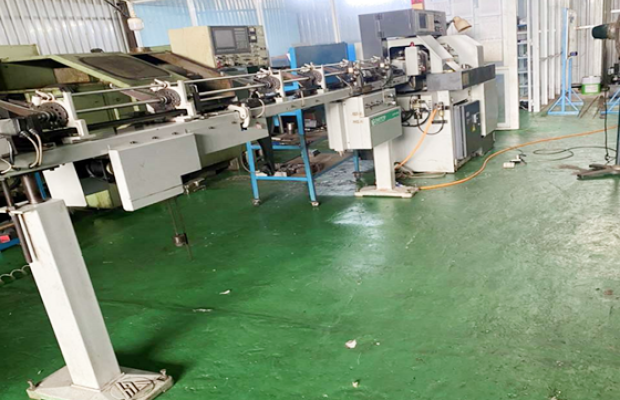

AUTO LATHE
Model: STAR SH 16, SH12, SH10
Length capacity: 3000mm
Max machining Diameter: 16MM, 12MM, 10MM
Station Turret: 6

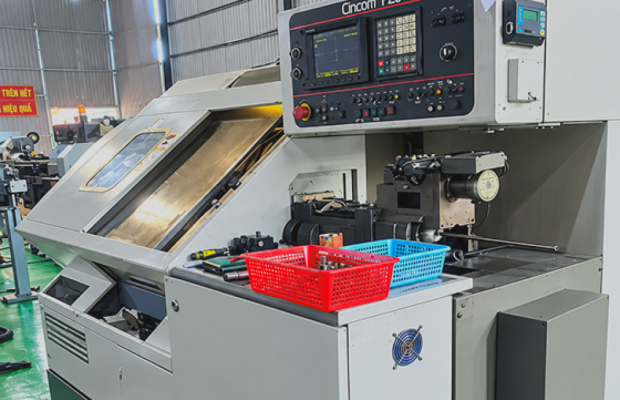

AUTO LATHE
Model: Cincom F25, F12
Length capacity: 3000mm
Max machining Diameter: 25MM, 12MM
Station Turret: 10
KURAKI MILLING CENTER
Model: KV-1000
Bed size: 1370mm x 750mm
Max travel X/Y/Z: 1150 x 600 x 600MM
Max Height: 750mm
Spindle taper: BT- 50
Automatic tool changer: 24 positions

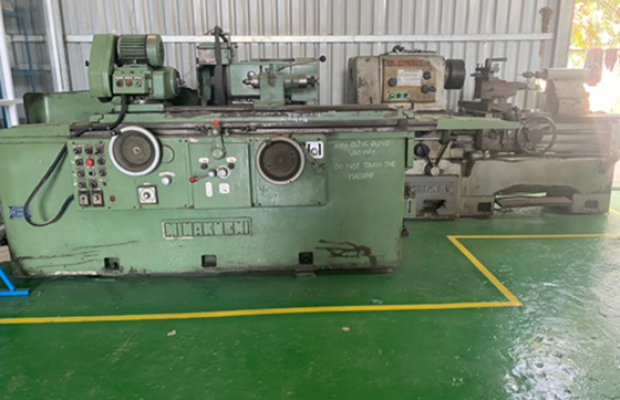

MINAKUCHI GRINDER
Length capacity: 750mm
Max machining Diameter: 300MM

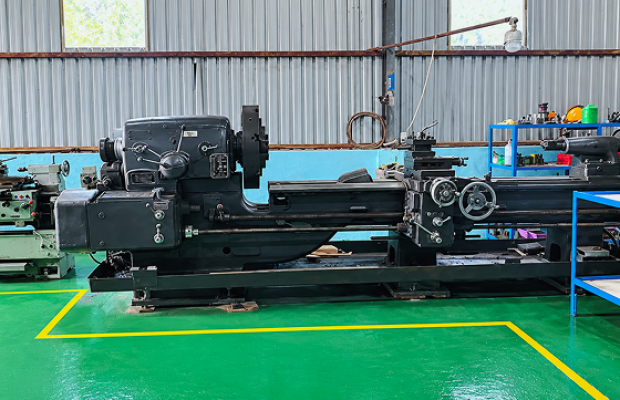

TUDA 650 MANUAL LATHE
Model: TUDA 650
Length capacity: 2200mm
Max machining Diameter: 900MM/480MM
Max through spindle with hydraulic chuck: 80mm OD

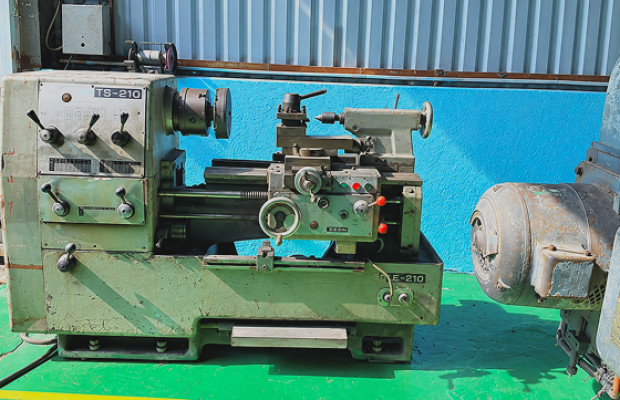

TAKISAWA MANUAL LATHE
Length capacity: 1000mm
Max machining Diameter: 400MM
Max through spindle with hydraulic chuck: 50mm OD
MITUTOYO QM 353
Model: QM-353
